LC-MS Viewer
A browser-based LC-MS data viewer—no installation or download required. It runs entirely in your browser, works on desktop and mobile (phones & tablets), and your data never leaves your device.
Supported file formats:
- UV / PDA data: ASCII (.txt, .asc, .ascii) and AIA/ANDI CDF (.cdf)
- MS data: mzML (.mzML) and XML (.xml)
Features include multi-wavelength PDA chromatograms, mass spectrum extraction, Gaussian deconvolution, adduct search, peak integration, and XIC overlays. Made with Claude Opus 4.6.
Don't hesitate to contact me with suggestions to improve the software, or to share your own version!
Use directly in your browser. Loads the Plotly library from a CDN—requires an internet connection.
Open AppDownload the HTML file together with plotly_min.js and open it locally—works without internet.
Download HTML Download plotly_min.js3D-Printable Lab Accessories

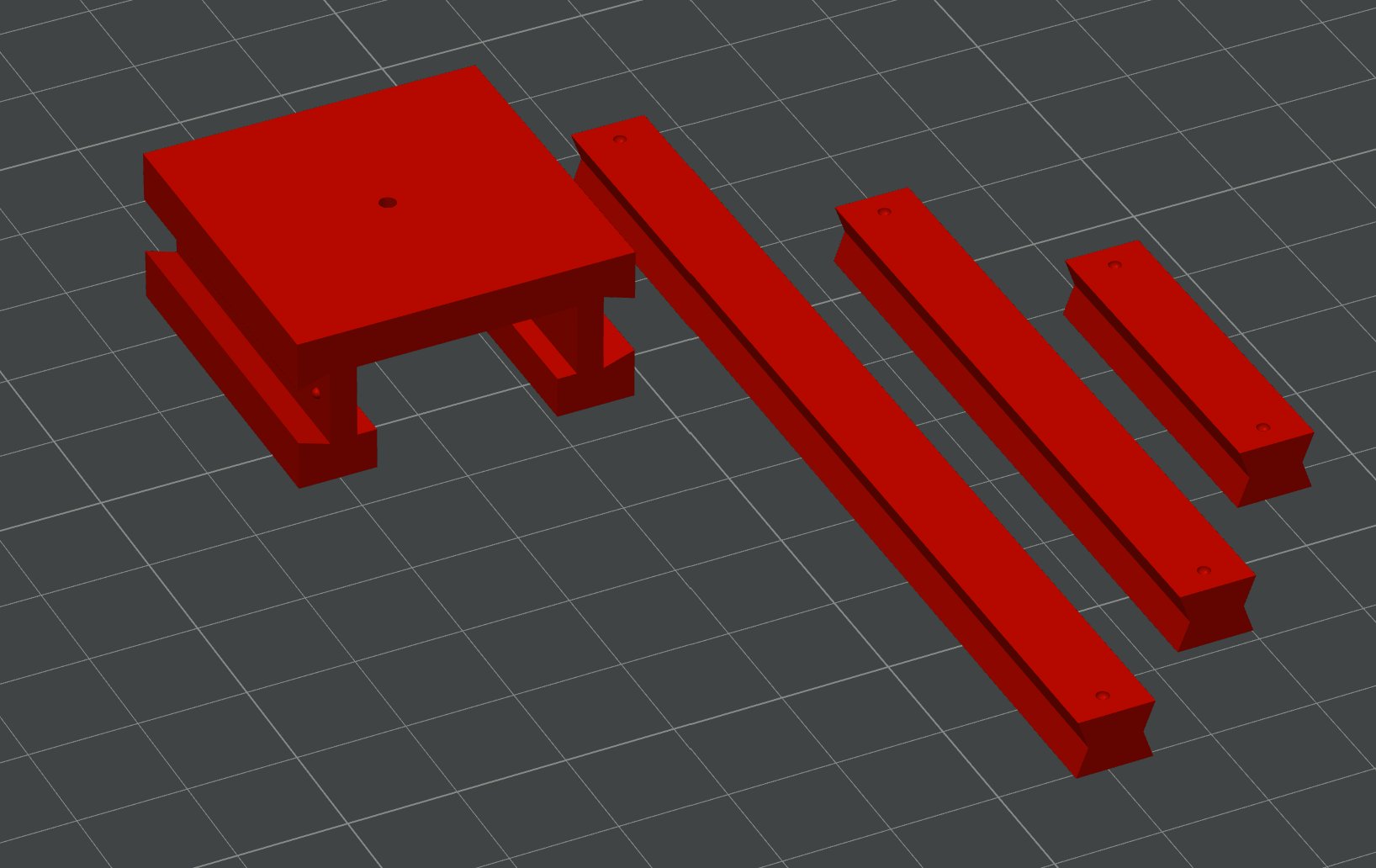

Microwave Vial Holding System
Designed to hold microwave vials next to each other while preventing septum expansion when internal pressure reaches ~3 bar or more. Download the STL files below and print them on any standard FDM or SLA 3D printer.
The system consists of a stopper that sits on the vial cap and tenons (spacers) available in three lengths to hold different numbers of vials side by side.
⚠️ This is not a certified pressure-containment system. Depending on the printing material and print settings, mechanical resilience may vary. Use at your own risk.
Cap piece that prevents septum expansion under pressure. Place on top of the microwave vial septum.

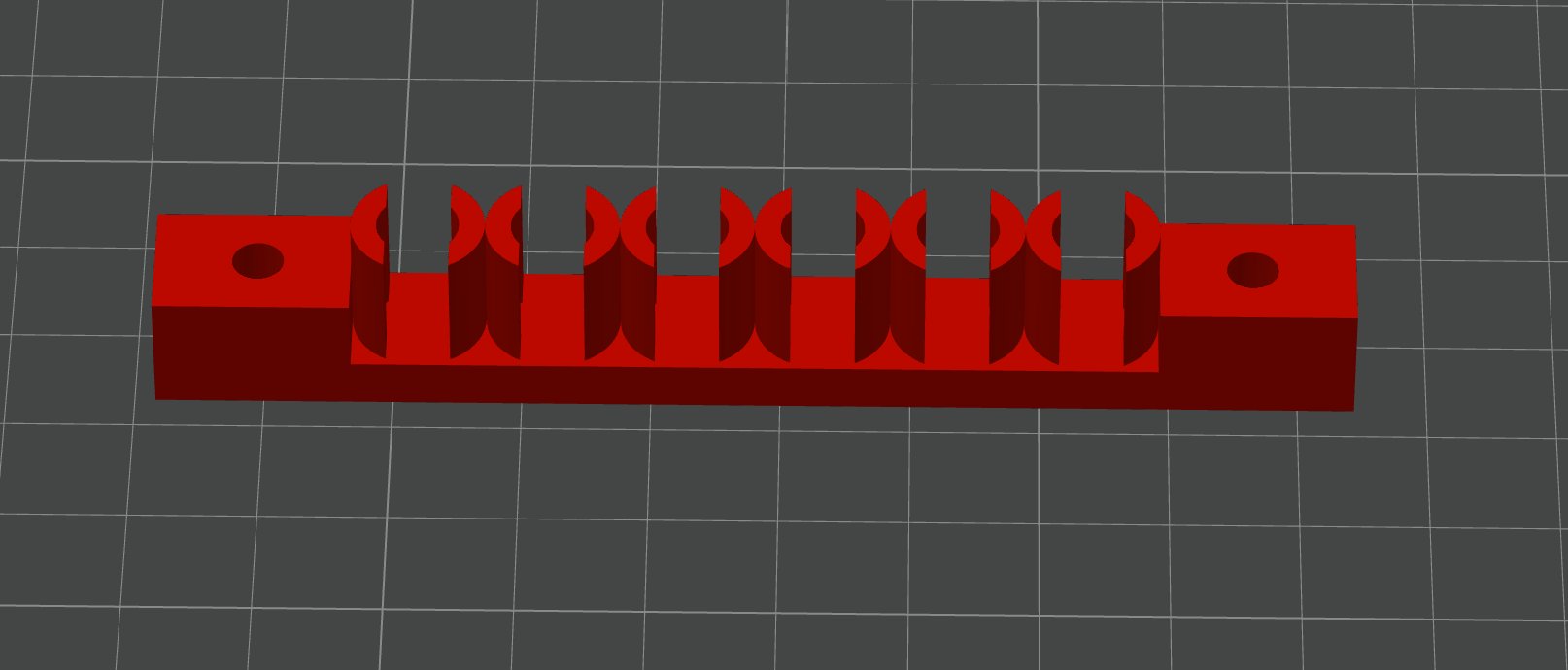

Download STL6× Syringe Clip Holder
A wall- or bench-mountable clip holder for six syringes. Features open half-cylinder clips for quick snap-in / snap-out access, with mounting holes on each end for screws or bolts.
Holds six syringes in snap-fit clips. Mount to a wall or bench with two screws through the end holes.
Download STL Download OpenSCADLow-Cost Photochemical Setup
Coming soon.
